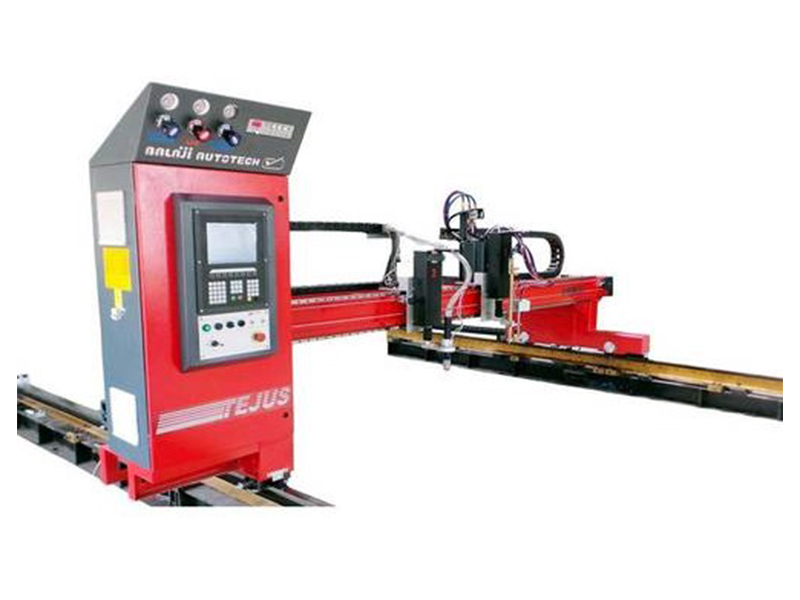

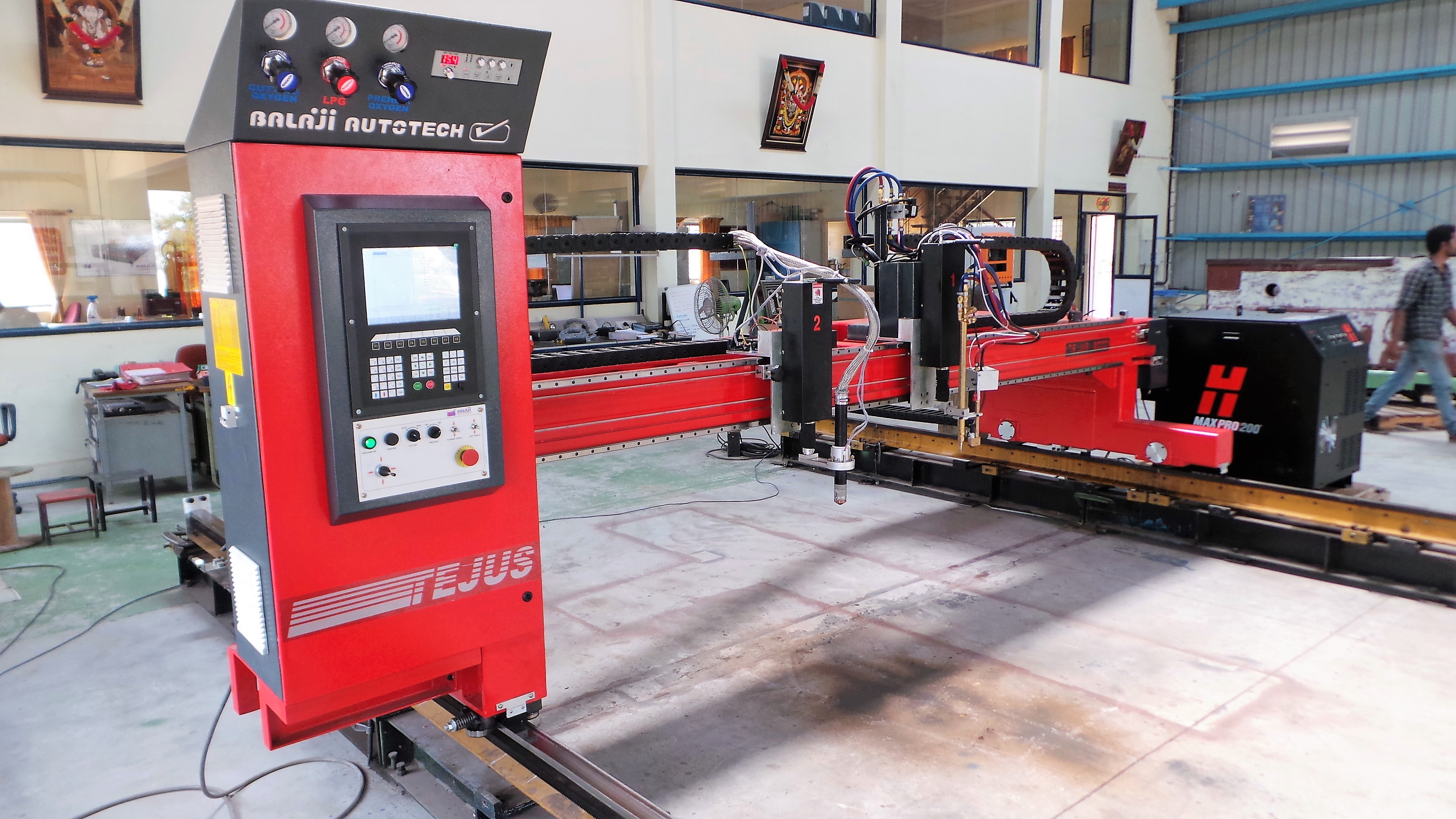

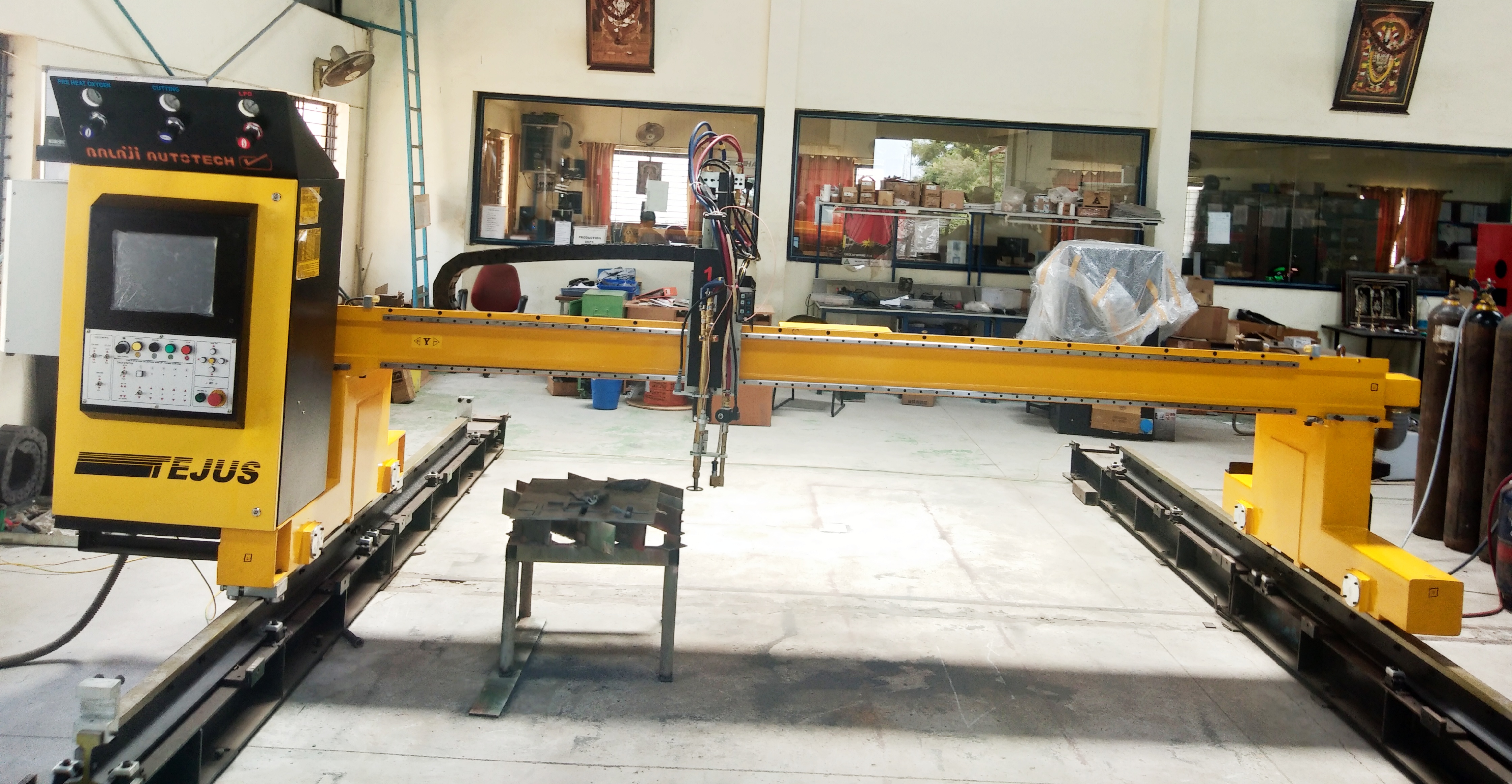

TEJUS CNC Flame and Plasma Cutting Machine

TEJUS CNC Flame/Plasma Cutting Machine

(Heavy-Duty Mechatronics)

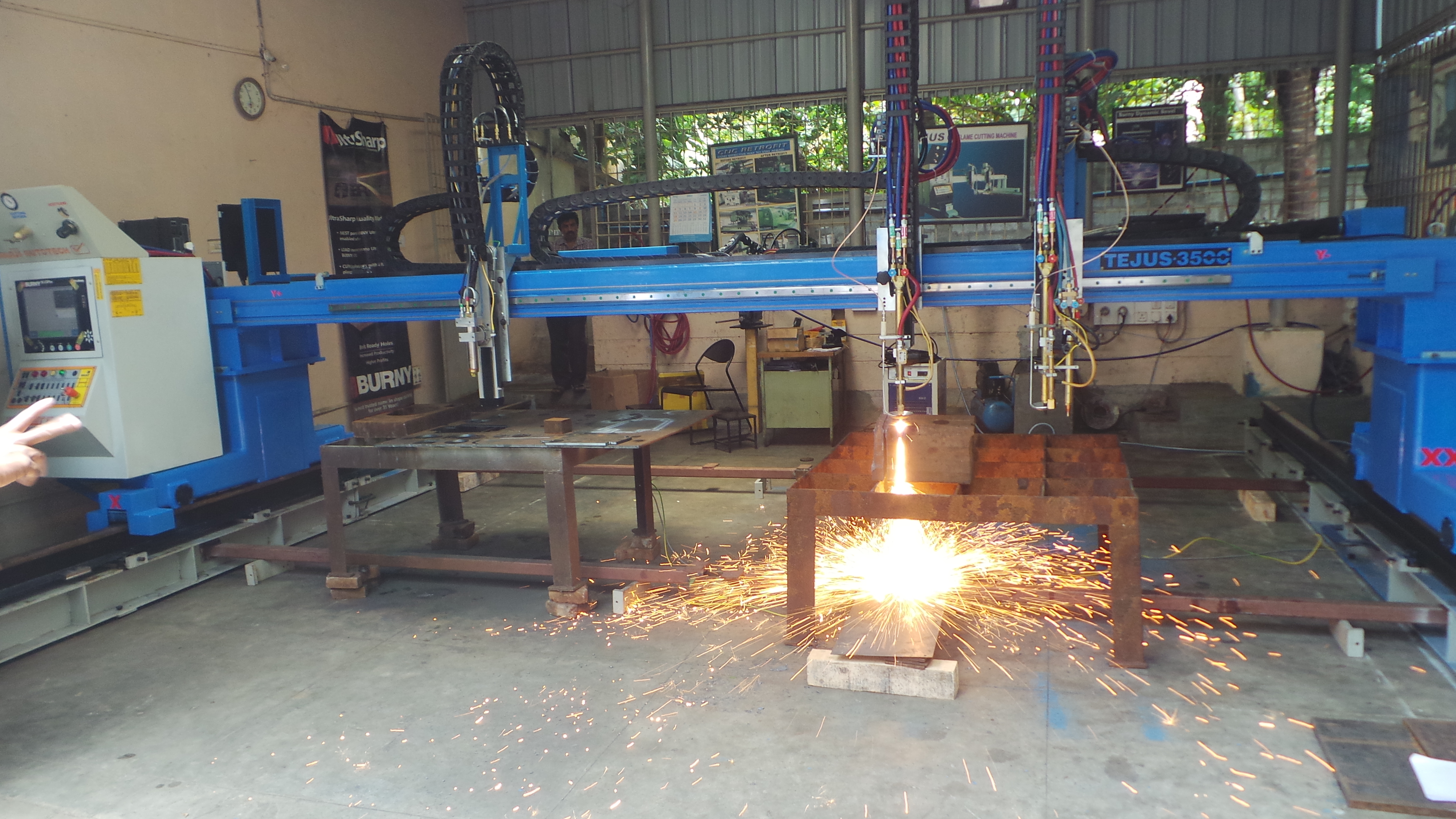

The TEJUS Series is engineered for heavy-duty industrial profile cutting. It features a robust dual-drive gantry system capable of carrying multiple Oxy-Fuel or Plasma torches.

Max Cutting Capacity: Up to 300mm (Oxy-Fuel)

Application: Shipbuilding, Structural Steel, Earthmoving

Capabilities: Multi-Torch, Heavy Plate Cutting, High Speed Plasma

TEJUS Series: Flagship Multi-Torch CNC Cutting Mechatronics

The TEJUS Series stands as Balaji Autotech's premier solution for large-format, high-capacity plate processing. Engineered specifically for high-volume 24/7 production environments, it combines a massive heavy-walled gantry structure with precision mechatronic controls.

1. Robust Gantry & High-Load Architecture

Precision Dual Drive System: Synchronized AC Servo motors with planetary gearboxes.
Hardened LM Guide Technology: Industrial-grade linear motion guides.

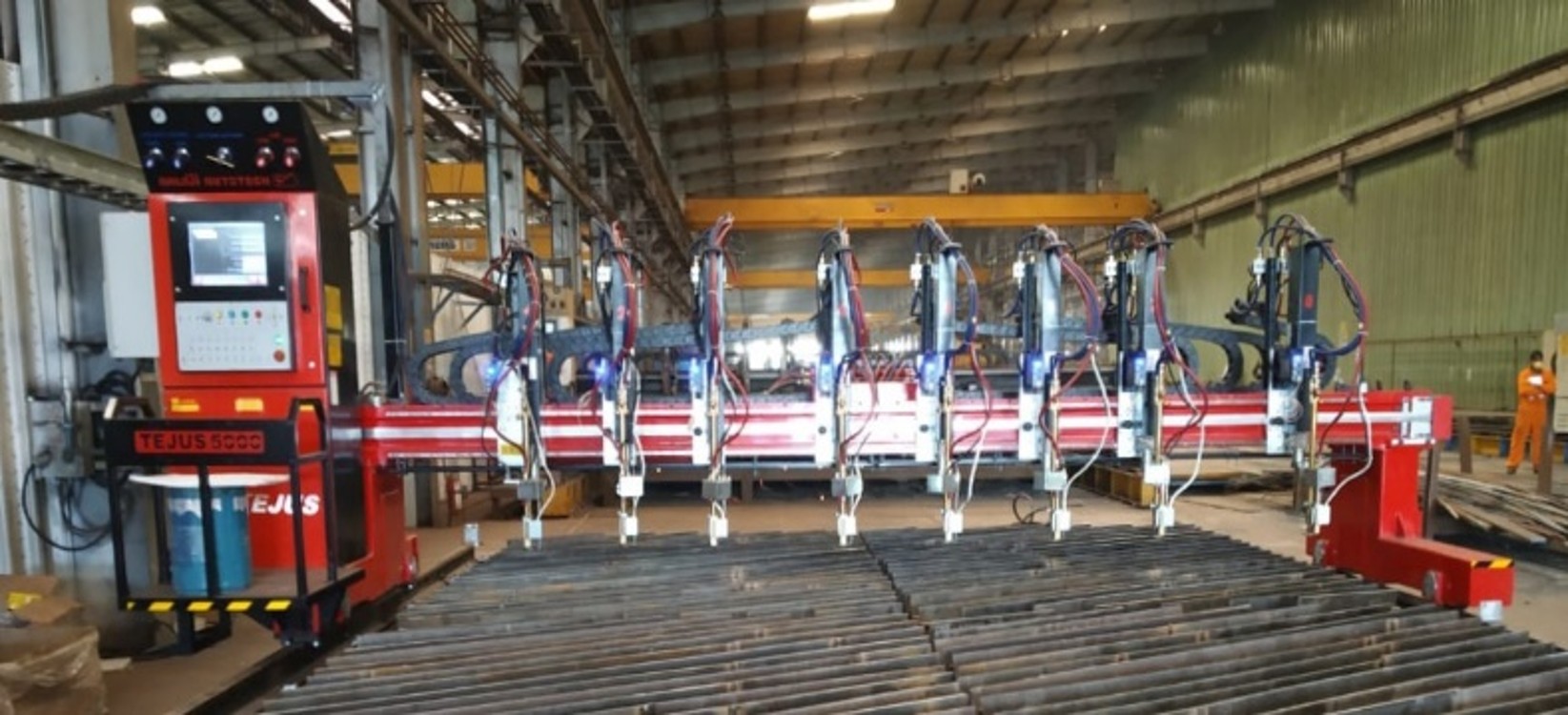

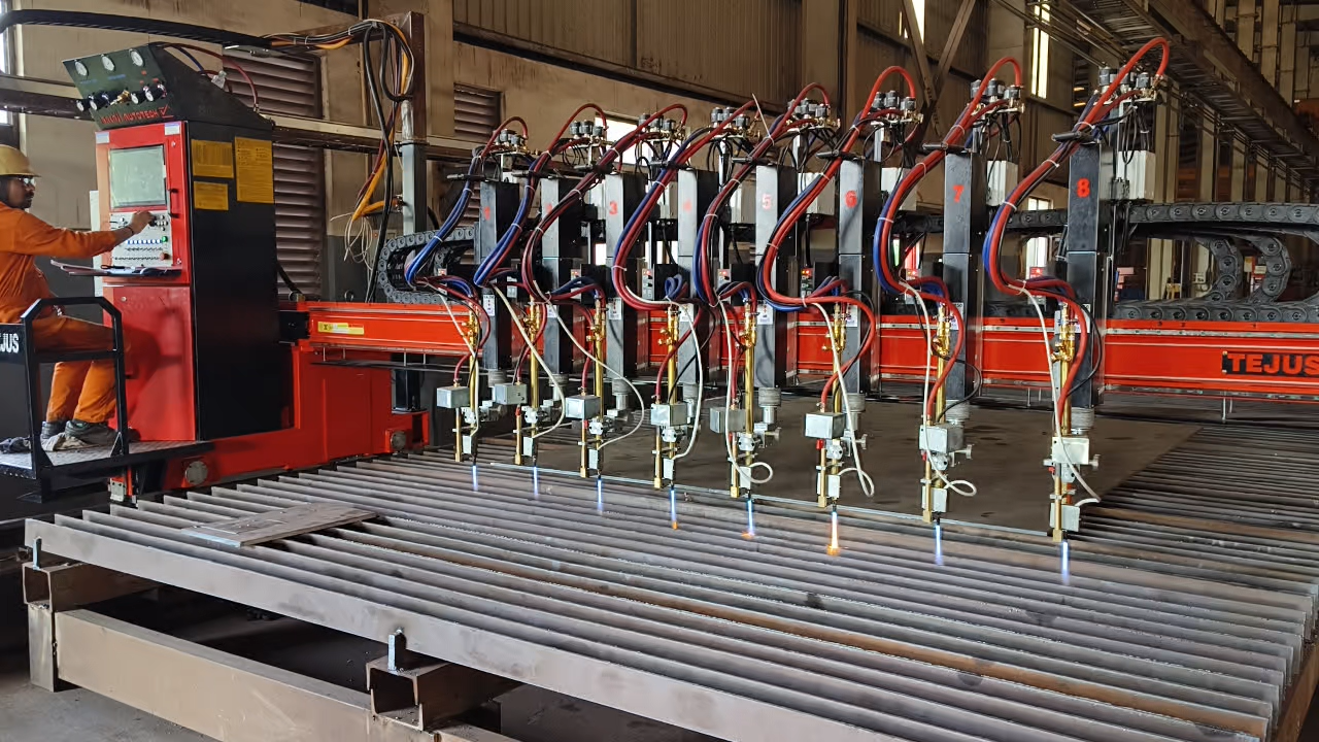

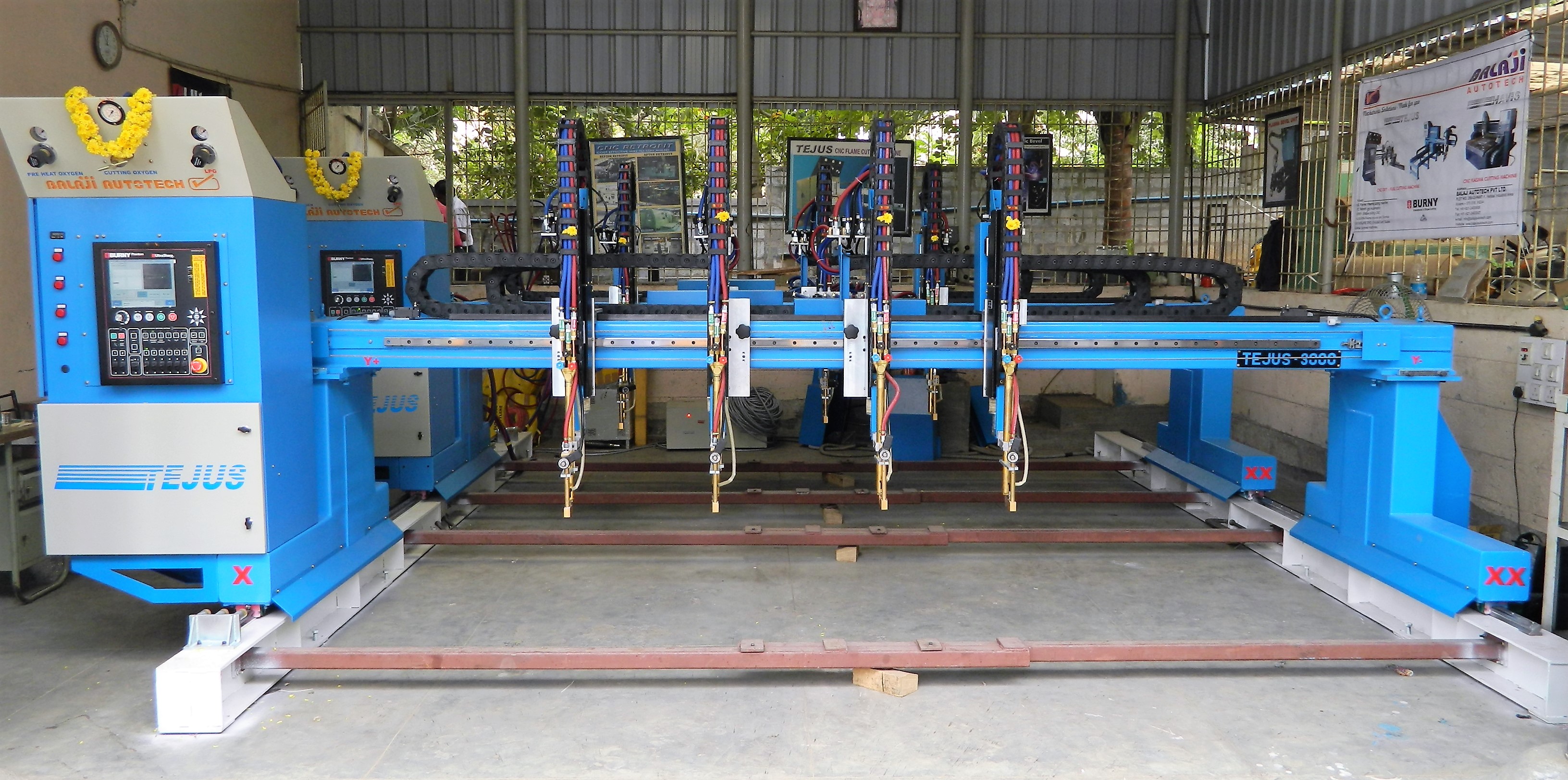

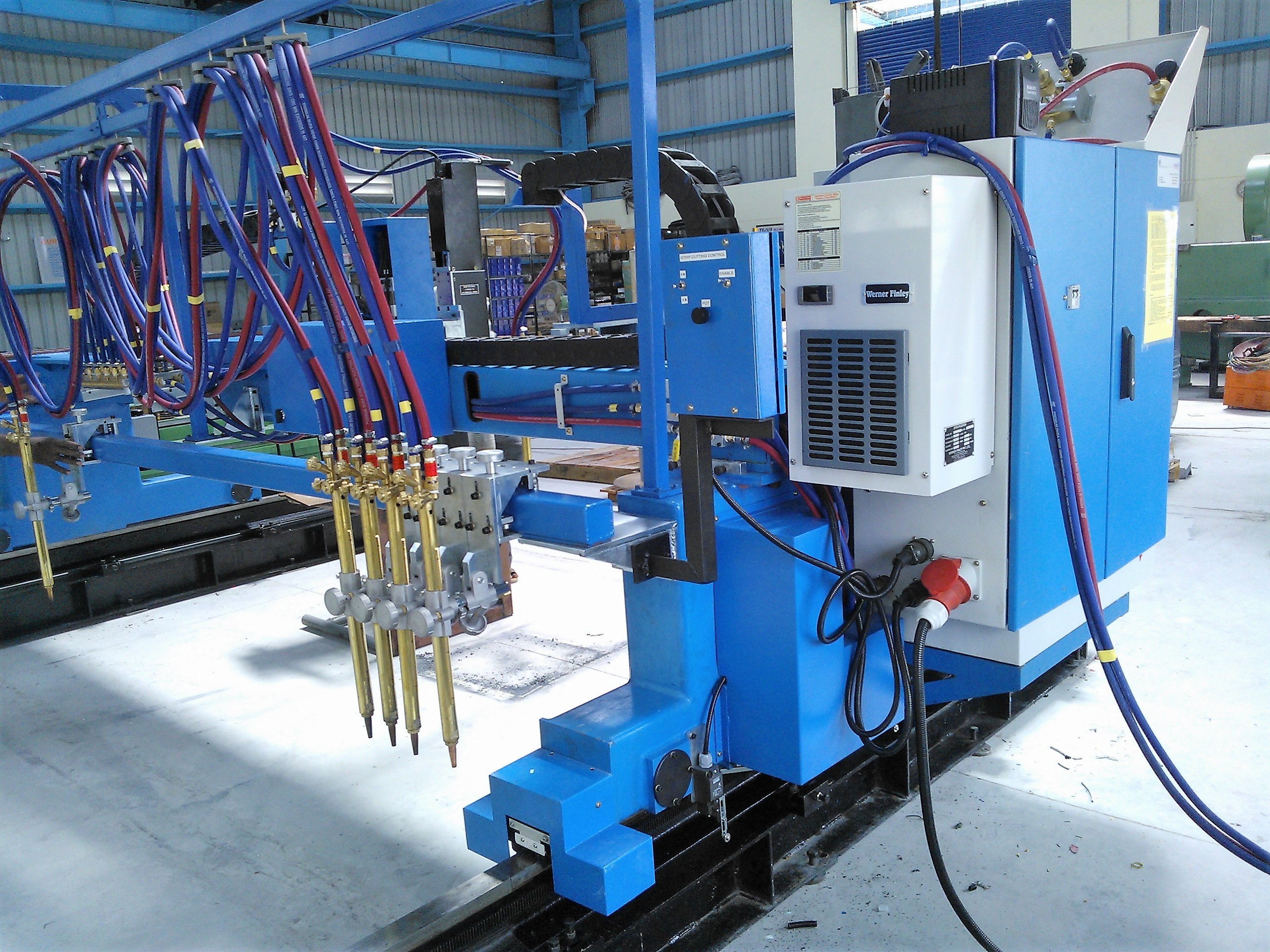

Maximum Throughput Configuration: Up to 4 Oxy-Fuel and 2 Plasma torches.

2. Advanced Mechatronic Control Systems

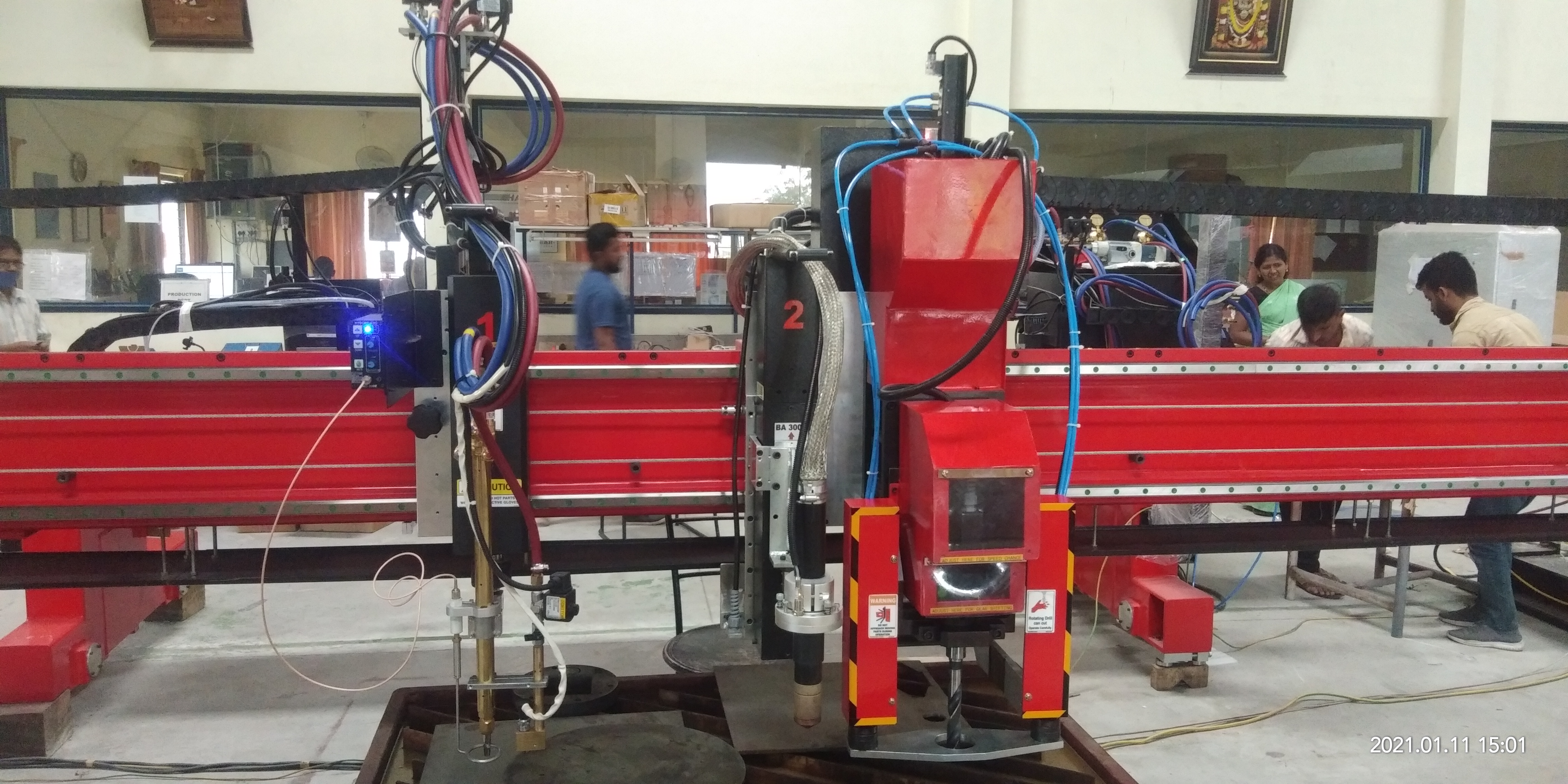

Motorized Automatic Torch Spacing: Rapid changeovers via CNC interface.

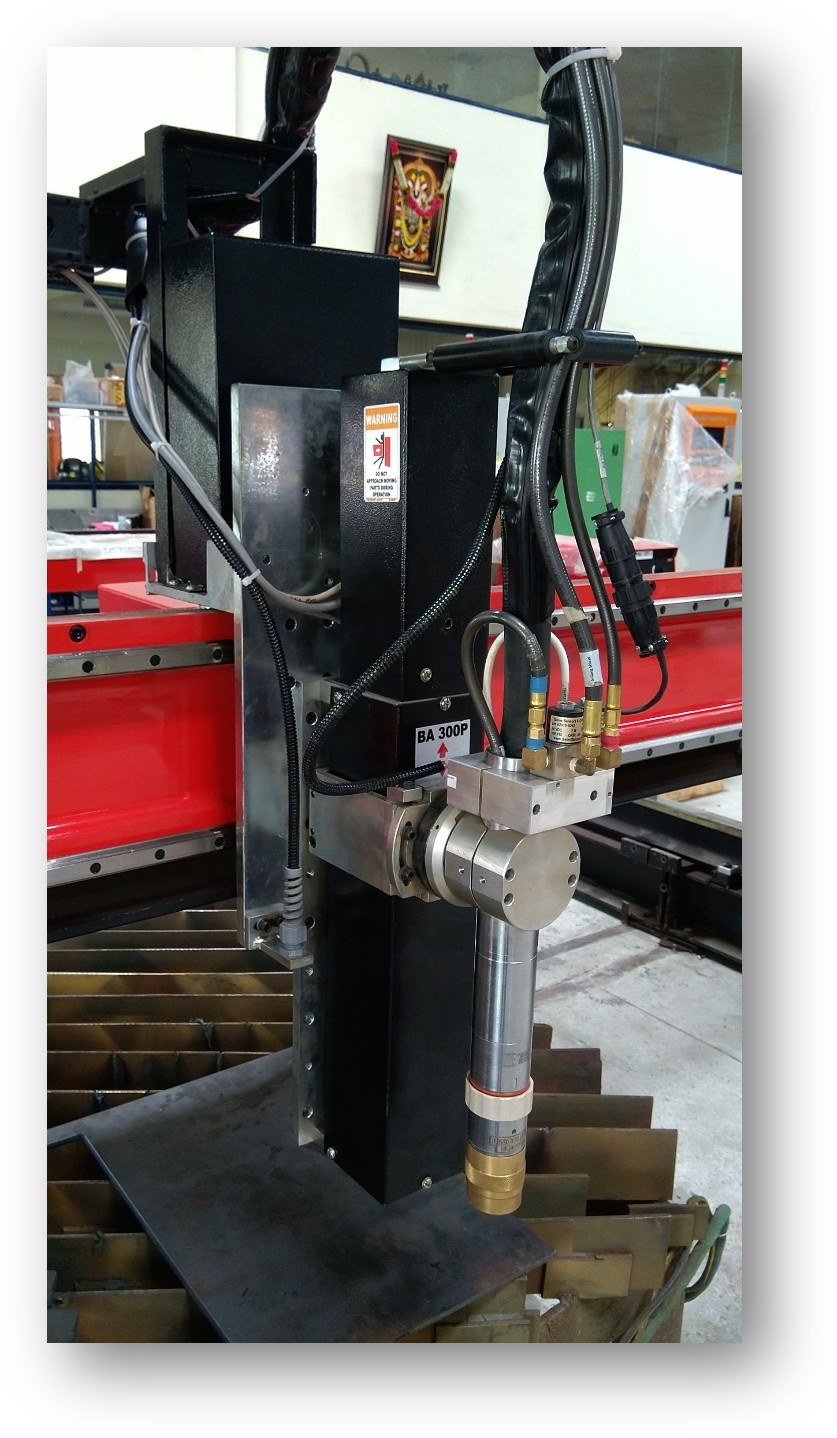

Intelligent Smart Height Control (AHC): Real-time arc voltage stabilization.

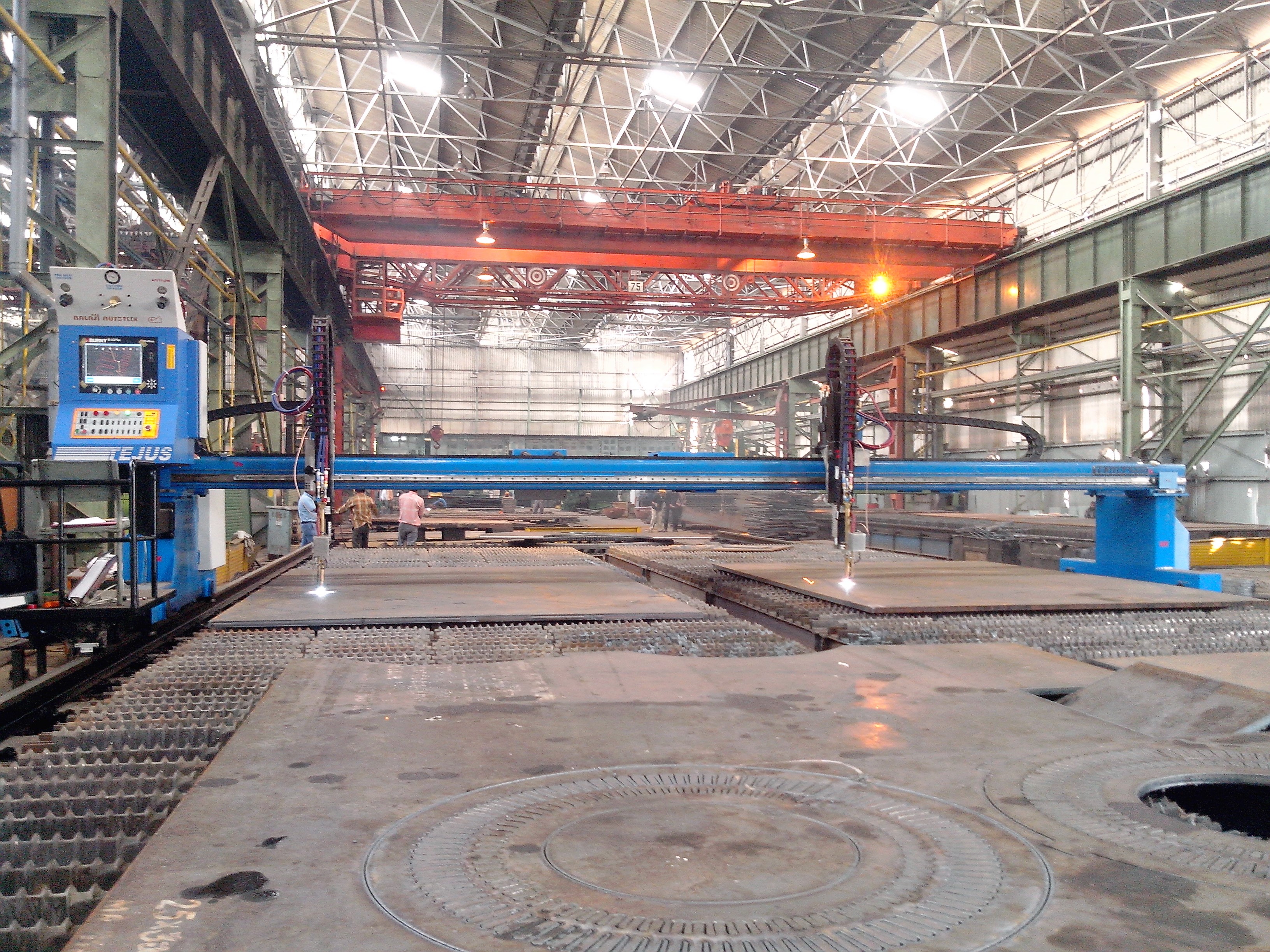

CNC Precision Interface: Compatible with Hypertherm/Burny/Esa controllers.

3. Heavy-Duty Cutting Capabilities

Extreme Thickness Range: Mild Steel up to 200mm (Oxy-Fuel).
Extended Bed Lengths: Modular rails up to 30,000mm.

TECHNICAL PARAMETER	T-2100	T-3000	T-4000	T-6000
CUTTING WIDTH (ONE TORCH)	2100 mm	3000 mm	4000 mm	6000 mm
TOTAL WIDTH	3600 mm	4500 mm	5500 mm	7500 mm
CUTTING LENGTH	3000 mm (Option to extend up to 40,000 mm)
MIN. PARALLEL CUT	100 mm (Without Auto Height Control) / 170 mm (With Auto Height Control)
CUTTING TABLE HEIGHT	550 mm
SPEED	50–8000 mm/min
MACHINE AXIS	X, Y
POSITIONING ACCURACY	±0.5 mm
REPETITION ACCURACY	±0.2 mm
CUTTING CAPACITY	One Torch: 3–300 mm Two Torch: 3–200 mm Four Torch: 3–100 mm
INPUT SUPPLY	1 Phase / 3 Phase, 230V or 415V, 50 Hz (Depends on Servo Drives)
