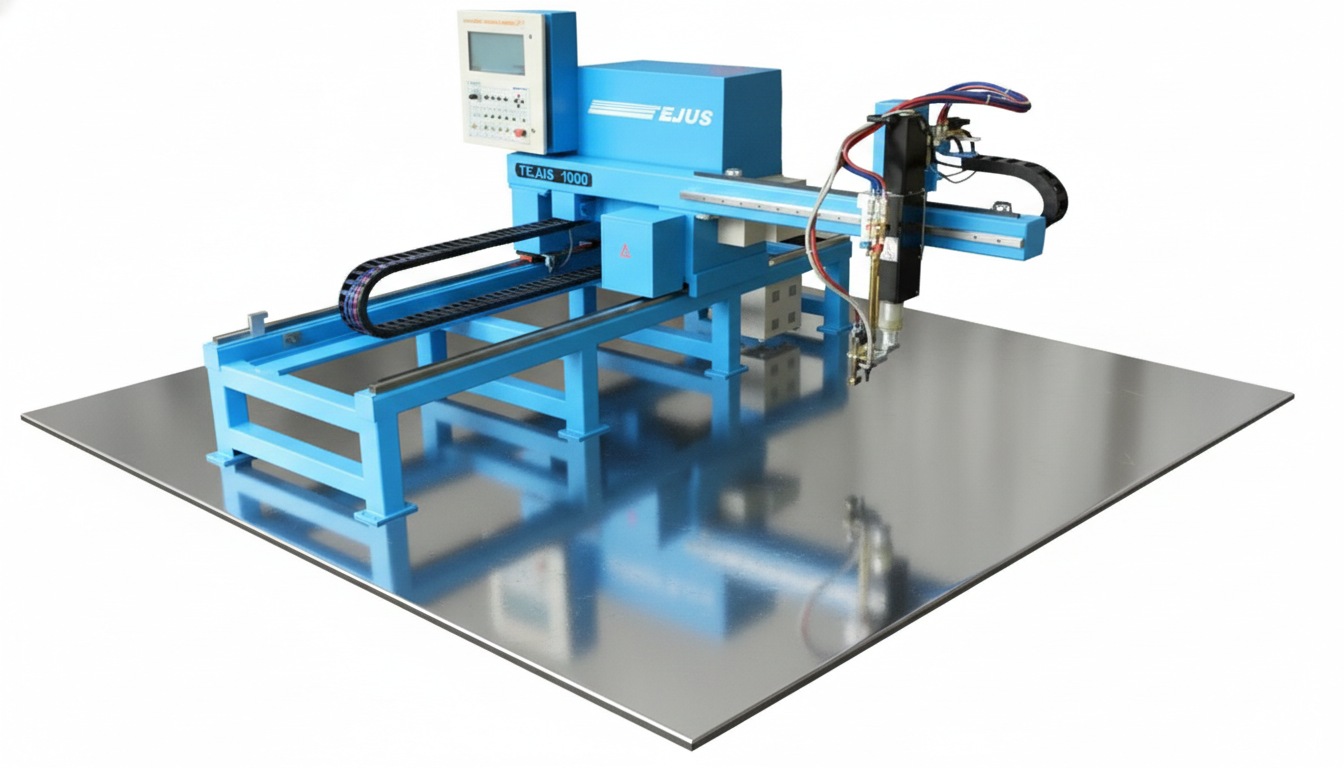

TEJUS - ECNO (Cantilever Series)
The TEJUS-ECNO is an economical cantilever-style CNC cutting machine designed for precision Oxy-Fuel and Plasma processes. Ideal for small to medium fabrication shops, it offers a compact footprint with industrial-grade accuracy, making it perfect for PEB manufacturers and AC ducting specialists.
Cutting Range: 1000mm - 1500mm Width
Application:
PEB Manufacturers, AC Ducting, SheetmetalTEJUS-ECNO: Smart & Economical Cantilever CNC
The TEJUS-ECNO series represents an intelligent choice for businesses that need high-precision cutting without the large footprint of a gantry system. Manufactured by an ISO 9001:2015 certified company, this mechatronic system ensures reliability and quality.
Product Highlights:
- Compact Versatility: Specifically designed for sheetmetal fabrication and AC duct manufacturers.
- Process Integration: Fully compatible with high-speed Plasma and traditional Oxy-Fuel cutting.
- Advanced Drive System: Capable of maintaining consistent precision at speeds ranging from 20 to 8000 mm/min.
- System Partners: Authorized integration with Lincoln Electric, Hypertherm, and Kjellberg technologies.
| TECHNICAL PARAMETER | TE-1000 | TE-1500 |
|---|---|---|
| Cutting Width (One Torch) | 1000 mm | 1500 mm |
| Standard Cutting Length | 2000 mm | 2000 mm |
| Extended Length Option | Up to 6000 mm | |
| Cutting Speed | 20 to 8000 mm/min | |
| Cutting Capacity (Oxy-Fuel) | 3 mm to 200 mm | |
| Cutting Table Height | 550 mm | |
